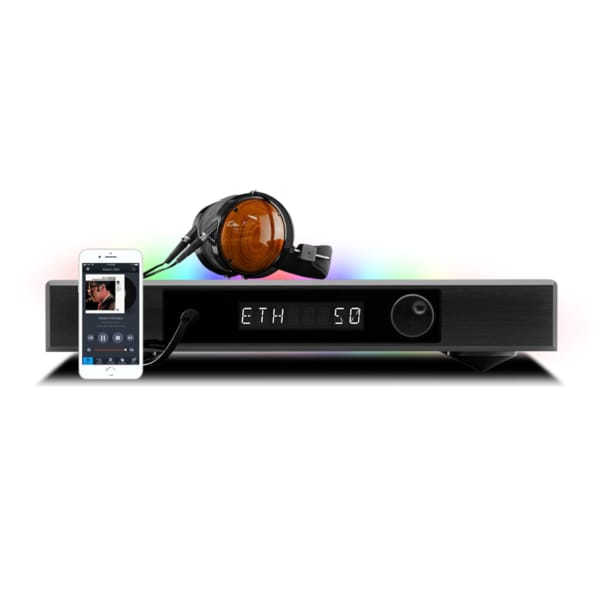

Bel Canto – e1X Integrated

The new e1X Integrated, Shares the DAC Control
preamplifier core and functions with a custom
power amplifier rated at 180/250 watts. Stream
music through Ethernet or USB, or the full suite of
digital inputs, line level inputs, sub output and
MM/MC software controlled analog phono stage.
Features include software controlled Trim, Bass EQ
and subwoofer filter management. Roon Ready or
DLNA control with Bel Canto SEEK iOS APP to
stream Tidal/MQA, Qobuz or your personal library.

SKU: bel-canto-e1x-integrated Categories: ,

Additional information

Brand

Technical Specifications

24bit Data to 192ks/s : AES, SPDIF, TOSLINK 24bit Data to 192ks/s, MQA, and DSD64: 10/100 Ethernet 24bits to 384ks/s, MQA, and DSD64/128 (DoP): USB2 Audio Headphone : 4.5Vrms maximum, 32ohm minimum load Input Sensitivity : MM: 2.5mV to 5mV; MC: 0.25mV to 0.5mV Input Load : MM: 47K ohms; MC: 50, 100, 500, 1000 RIAA Accuracy : +/- 0.25dB, 50Hz-15kHz THD+N : 70dB A-Weighted Damping factor : >500 Maximum Power Output : 250W-4ohm, 180W-8ohm Peak Output Current : 18 amperes Frequency Response : -3 dB 0.5Hz-50kHz, all loads Output connections : 2-pair WBT Nextgen binding posts Dynamic Range : 125dB A-weighted THD+N : <0.001% 1W, 1kHz, 4 ohms
