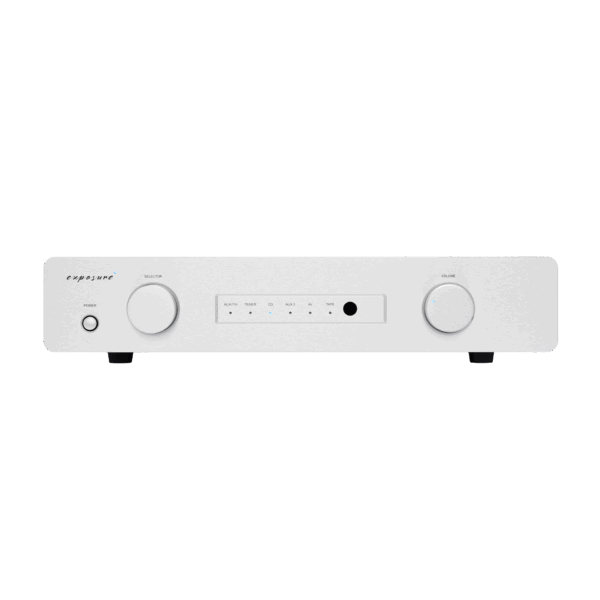

Exposure 3510 Preamplifier
The Exposure 3510 is a solid-state preamplifier created for music-focused audiophiles, giving you a refined analogue control centre, partnering dedicated power amplifiers while keeping the signal path short and pure. Every design choice in the Exposure 3501, from the large toroidal power supply to the discrete class A output buffer, serves the goal of faithful music reproduction.
Music-focused engineering in a compact chassis
Within the all-aluminium casework, the Exposure 3510 Preamplifier uses a large custom-made toroidal transformer and generous smoothing capacitors in the power supply, providing stable, clean operating conditions for the audio stages. The gain section feeds discrete transistor class A output buffers, designed to preserve subtle detail and drive long interconnect runs to your power amplifier with ease.
Measured performance underlines the engineering approach. The Exposure 3510 offers a 20Hz–20kHz frequency response within ±0.25dB, total harmonic distortion below 0.005% at rated output, and a signal-to-noise ratio better than 100dB (A-weighted). This combination of bandwidth, linearity and quiet operation is exactly what owners of a high-end separate line stage expect.
Connectivity for modern analogue and digital sources
As a control hub, the Exposure 3510 Preamplifier is deliberately versatile. Six line inputs are provided, or five plus an optional MM or MC phono card or a plug-in DAC module, allowing you to configure the unit around your preferred source mix. Two main RCA outputs make it straightforward to feed a stereo power amplifier, active loudspeakers or a bi-amped arrangement, while a dedicated tape output supports recording or fixed-level feeds.
High-quality relays handle input selection, preserving channel balance and channel separation, and the entire front panel can be managed from the supplied remote handset. Input select, volume and mute are all available from your listening seat, which makes the Exposure 3510 particularly satisfying in longer sessions or multi-source setups.
British build, purposeful design
The Exposure 3510 is part of a range designed, engineered and proudly manufactured in Britain by a team specialising in high-fidelity amplification. The full aluminium casework and extruded front panel are chosen both for mechanical rigidity and for control of unwanted resonance and fields around the sensitive gain stages.
A choice of classic black or understated titanium finishes allows the Exposure 3510 Preamplifier to integrate visually into a wide variety of racks and living spaces.
System building and pairing with power amplifiers
Many owners choose the Exposure 3510 Preamplifier with the 3510 Stereo Power Amplifier, creating a matched pre/power stack with shared voicing and aesthetics. The dual RCA outputs make it simple to drive that stereo power amp or a pair of mono blocks, and the generous output capability of up to 7.7V RMS at 1kHz ensures comfortable headroom into most power amplifiers.
At the same time, the Exposure 3510 remains happy partnering quality solid-state or valve power amps from other brands, provided they accept standard unbalanced RCA inputs.
Installation and setup guidance
The Exposure 3510 Preamplifier is straightforward to place and connect. Its 90mm (H) x 440mm (W) x 300mm (D) footprint and 7kg weight suit most dedicated audio racks and shelves. Position it on a stable, ventilated surface, avoiding stacking directly above heavy heat-generating power amplifiers where possible.
Connect your line sources to the chosen inputs, and if you opt for the internal MM/MC phono module or plug-in DAC, your retailer will install and configure the card in one of the input positions. Run short, good-quality interconnects from the pre-out sockets to your power amplifier, check mains voltage (110/120V or 220/240V, factory set), and you are ready to fine-tune volume and input selection from the remote.
About Exposure
Exposure Electronics has been creating hi-fi components since 1974 under the banner “Artistry in audio since 1974”. The company focuses on delivering genuine high-fidelity performance through carefully engineered solid-state designs, rather than short-lived fashion or unnecessary complication.
All Exposure products, including the 3510 series, are designed, engineered and proudly manufactured in Britain by a dedicated team of audio specialists committed to accurate music reproduction. The result is a family of amplifiers and source components that pair musical insight with understated industrial design.
You can explore the wider range, history and design philosophy on our curated Exposure brand page, where the Exposure 3510 Preamplifier sits alongside matching integrated and power amplifiers for coherent system building.
Specifications
FAQs
What are the key Exposure 3510 Preamplifier specifications?
The Exposure 3510 offers an output level of 1.9V for rated input, with a maximum output of 7.7V RMS at 1kHz. Frequency response is 20Hz–20kHz within ±0.25dB, with total harmonic distortion below 0.005% and signal-to-noise ratio better than 100dB (A-weighted). Input impedance is 18kΩ minimum, sensitivity 250mV, and power consumption under 25W.
Does the Exposure 3510 Preamplifier include a phono stage or DAC?
The Exposure 3510 is supplied with six line-level inputs as standard, and one of these can be substituted for an optional MM or MC phono module or a plug-in DAC board. This modular approach lets you tailor the preamplifier around turntable or digital needs rather than paying for facilities you may not use.
Is the Exposure 3510 Preamplifier a solid-state pre amplifier made in the UK?
The Exposure 3510 is a solid-state design using discrete transistor class A output buffers in its audio stages. Exposure states that its products are designed, engineered and proudly manufactured in Britain by a specialist in-house team, so this model sits firmly within the brand’s British-made heritage. This aligns neatly with searches for a solid state pre amplifier made in UK.
How does the Exposure 3510 Preamplifier work with the 3510 power amplifier?
The Exposure 3510 is designed as the natural partner to the 3510 Stereo Power Amplifier, sharing circuit philosophy and styling. Using the preamplifier’s dual RCA outputs, you can drive the stereo power amplifier or a pair of 3510 mono power amplifiers for further scale. This combination is frequently highlighted in Exposure 3510 review coverage for its coherent, series-matched approach.
What kind of remote control and switching does the Exposure 3510 Preamplifier provide?
The Exposure 3510 includes full remote control of input selection, volume and mute, allowing you to operate the unit entirely from the listening position. High-quality relays are used for input source selection, preserving signal integrity while ensuring consistent channel balance across all inputs. This combination of relay control and remote convenience is a key usability advantage over many older analogue preamps.
How does a dedicated Exposure 3510 Preamplifier compare to an integrated amplifier?
A dedicated Exposure 3510 separates low-level signal handling from high-current power amplification, giving more freedom to choose and upgrade power amps over time. With six configurable inputs, optional phono or DAC and dual pre-outs, it functions as a flexible command centre rather than a fixed integrated solution. This is appealing for enthusiasts stepping up from integrated units toward an audiophile separates system.
What finish options are available for the Exposure 3510 Preamplifier?
The Exposure 3510 is available in two finishes: classic black and elegant titanium, both using full aluminium casework with an extruded front panel. These finishes match other 3510 series components, including the associated power amplifiers, helping you create a visually unified stack in the rack as you expand the system.
What are the Exposure 3510 Preamplifier’s noise and distortion figures?
The Exposure 3510 is specified with total harmonic distortion below 0.005% at 1kHz, referenced to rated output, and a signal-to-noise ratio greater than 100dB (A-weighted). These figures reflect the discrete transistor class A buffering and carefully regulated power supply, making the model a strong candidate when shortlisting an Exposure 3510 pre amplifier for low-distortion analogue control.
